REFLOW CHECKER MEMORY UNIT (PLUS α 6 CHANNELS RCM-T)
REFLOW CHECKER MEMORY UNIT (PLUS α 6 CHANNELS RCM-T)

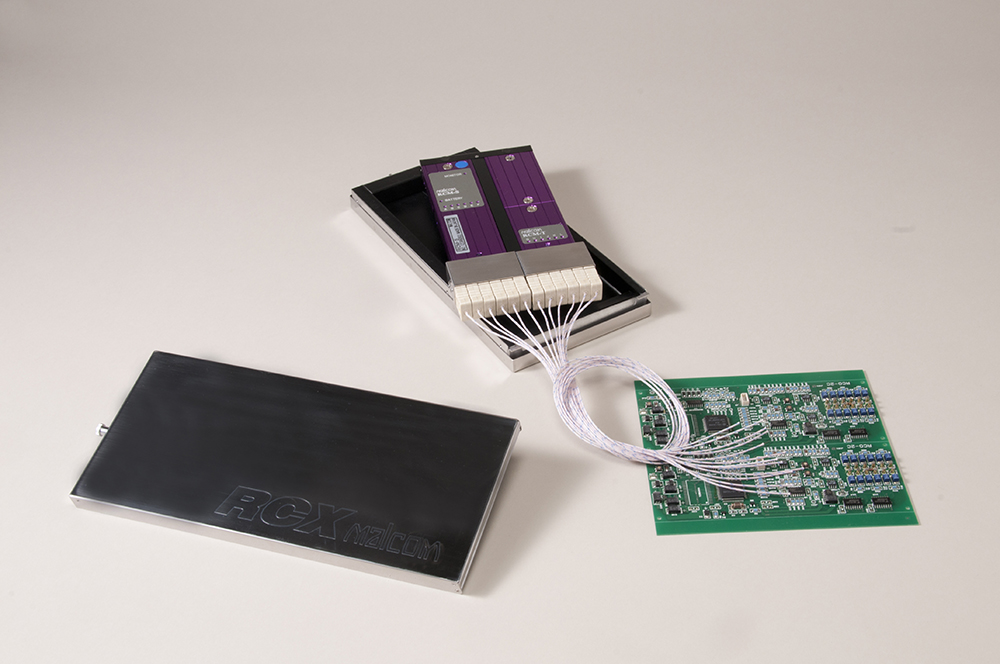

●Add RCX-T Reflow Checker Memory Unit to RCX-S Reflow Checker Memory Unit providing 12 points measurement.
●Can be used as 12 channels to study profiles, trial production and evaluation, for normal production,employed as 6 channels.
●Can be used as 12 channels to study profiles, trial production and evaluation, for normal production,employed as 6 channels.
Hot wind speed measurement
Sync with reflow profile
SAMPLE DATA
TMR-1 profile display example
product specification
| Item | Specification |
| Model Name | RCX-T |
| Main Unit | RCM-T |
| Measuring Temp. Range | 0℃～500℃※1 |
| Max Measuring Time | Approx. 3hours※1 |
| Sampling Time (sec.) | 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 4.0, 8.0 |
| Temperature Accuracy | ±1℃ |
| Measuning Points | 1～12poionts |
| Heat Resistant Connector | Miniature Connector |
| Input | Thermocouple JIS-K 1KΩ max. (φ0.1 10m) |
| Outer dimensions | Memory unit (w/o Heat resistant case) 55 (W) x 253 (D) x 18 (H) mm ※ 2 |
| Heat resistant case: 65 (W) x 328 (D) x 25 (H) mm ※2 |
- * 1 It differes from the heat resistant time of memory unit.
- * 2 It is the experimental value by AAA battery. The max. measuring time depens on battery capacity.
- * The above specifications are subject to change without notice.
Cooling Unit
| Item | Specification |
| Model name | RCF-3 |
| Power supply | 100V～240V AC, (approx. 15W) 50/60Hz |
| Fan | Square 120 mm (2.9 m3 /min. Max.) 2 pcs. |
| Input gas | Rc 1/8 screw connection Air 0.5Mpa following |
| Outer dimensions | 350(W)×240(D)×160(H) (㎜) |
| Weight | Approx. 5kg |
