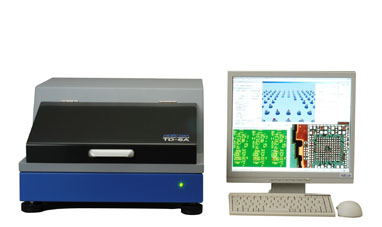

SOLDER-PASTE PRINT INSPECTION SYSTEM(TD-6A)
Usage
Automated table-top inspection system for measuring paste height, area, volume, and misprinting.
Feature
- ●Active Slit-Laser scans the board, and displays a full 3D image.
- ●Multi-colored LED illuminates using 16.77 million colors, making it possible to measure various kinds of PC
Boards accurately. - ●Gerber data program allows for speedy data inspection.
- ●A variety of 2D & 3D measurement functions can be selected according to user needs.
- ●SPC data analysis of the automated measurement data. (optional)
product specification
| Item | Specification | |
| Model Name | TD-6A | |
| Inspection | Object | Misprinting, Area, Height, Volume |
| PCB Warpage Range | ±3mm | |
| Measurement Range | 5.85mm(W), 4.39mm(D), 50 - 300μm(H) | |
| Resolution | Approx. 5.2μm | |
| Approval / rejection function | Automatic inspection using color image processing.
Automatically determines if paste meets user-specified standards using color image processing. |
|
| Speed 2D | 1sec. / field (5.85mm x 4.39mm) | |
| Speed 3D | 7.5sec. / 6cubic mm (Resolution 5.2 x 20μm) | |
| Inspection Data Testing Method | Teaching data 150 frame / PCB, Gerber data conversion program | |
| Inspection Data Output | Test File format Available SPC Analysis software (Option) | |
| PCB Dimension | Minimum. : 50 x 50mm Max. : 250 x 330mm Thickness : 0.5 - 3.0mm | |
| Measurement Range Possible | 240×320mm | |
| Optical Section | Light Source1 | Overhead RGB LED (16.77 million colors) |
| Light Source2 | Angled RGB LED (16.77 million colors) | |
| Light Source3 | Semiconductor Laser | |
| Camera | High-speed & High-resolution color camera | |
| Camera Field | 6.5 x 4.9mm | |
| Height Measuring Principle | Optical cutting triangular surveying by laser slit light, irradiation angle 45deg. | |
| Area Measuring Principle | Color image processing | |
| Slit-Laser | Semiconductor Laser : 8mm(W) x 10μm | |
| Safety Classification | Class 3B | |
| Casing | Circuit board clamp table | Circuit board gripping allowance 3mm, both-side clamping is possible |
| X axis | Stroke : 260mm | |
| Yaxis | troke : 340mm | |
| Zaxis | troke : ±5mm | |
| Outer Dimension | 500(W) x 690(D) x 320(H) （mm） | |
| System | High-speed image processing computer system built in | |
| Weight | 45kg | |
| Power Supply | AC100 - 240V, 50-60Hz, 450VA | |
| Interface | Universal serial bass USB x 2 Keyboard Input Mouse Input Monitor Output | |
- * The above specifications are subject to change without notice.
【Others】
| The safety criteria of the laser is in accordance with JIS C6802 (IEC 60825-1). |
| Since measurement depends on optical processing by laser light, measuring accuracy may be reduced in the following cases
a) When the object is extremely glossy (having reflecting surface) such as mirror b) When the light transmits downward such as glass, transparent resist, etc. |
| For protection of LED and laser, the laser light will go out automatically after lighting on for one minute. |
