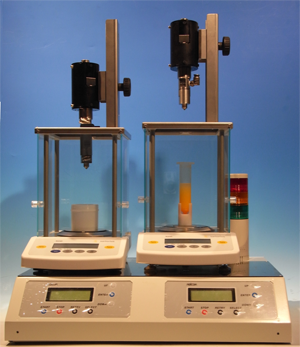

SYRINGE LIQUID DISPENSING SYSTEM（SAP-L1）
Usage
Dispensing can be controlled with high accuracy (such as silicon) liquid.
Feature
- ● Accuracy of ± 1mg liquid.
- ● You can configure the system for optimum use material type and tact purpose.
product specification
| Item | Specification | |
| Model Name | SAP-L1 | |
| Phosphor dispensing unit | Method | Liquid screw method |
| Material | Liquid(1mPa･s～15000mPa･s) | |
| Accuracy | ±1mg | |
| Phosphor dispensing method | Phosphor dispensing unit | |
| Weight | Approx. 700g | |
| Outer dimensions | Φ60×230㎜ | |
| Controller unit | Power supply | AC100～240V 50/60Hz |
| Air input | 0.5 MPa | |
| Weight | Approx. 10kg | |
| Outer dimensions | 505(W)×387(D)×303(H) (㎜) | |
